Passing Task Outputs to Task Inputs

In the previous lesson our task web-app-tests consumed an input resource and ran a script that ran some unit tests. The task did not create anything new. Some tasks will want to create something that is then passed to another task for further processing (this lesson); and some tasks will create something that is pushed back out to the external world (next lesson).

So far our pipelines' tasks' inputs have only come from resources using get: resource-tutorial build plan steps.

A task's inputs can also come from the outputs of previous tasks. All a task needs to do is declare that it publishes outputs, and subsequent steps can consume those as inputs by the same name.

A task file declares it will publish outputs with the outputs section:

outputs:
- name: some-files

If a task included the above outputs section then its run: command would be responsible for putting interesting files in the some-files directory.

Subsequent tasks (discussed in this section) or resources (discussed in the next section) could reference these interesting files within the some-files/ directory.

cd ../task-outputs-to-inputs
fly -t tutorial set-pipeline -p pass-files -c pipeline.yml
fly -t tutorial unpause-pipeline -p pass-files
fly -t tutorial trigger-job -j pass-files/job-pass-files -w

In this pipeline's job-pass-files there are two task steps create-some-files and show-some-files:

The former creates 4 files into its own some-files/ directory. The latter gets a copy of these files placed in its own task container filesystem at the path some-files/.

The pipeline build plan only shows that two tasks are to be run in a specific order. It does not indicate that some-files/ is an output of one task and used as an input into the next task.

jobs:
- name: job-pass-files
  public: true
  plan:
  - get: resource-tutorial
  - task: create-some-files
    config:
      ...
      inputs:
      - name: resource-tutorial
      outputs:
      - name: some-files

      run:
        path: resource-tutorial/tutorials/basic/task-outputs-to-inputs/create_some_files.sh

  - task: show-some-files
    config:
      ...
      inputs:
      - name: resource-tutorial
      - name: some-files

      run:
        path: resource-tutorial/tutorials/basic/task-outputs-to-inputs/show_files.sh

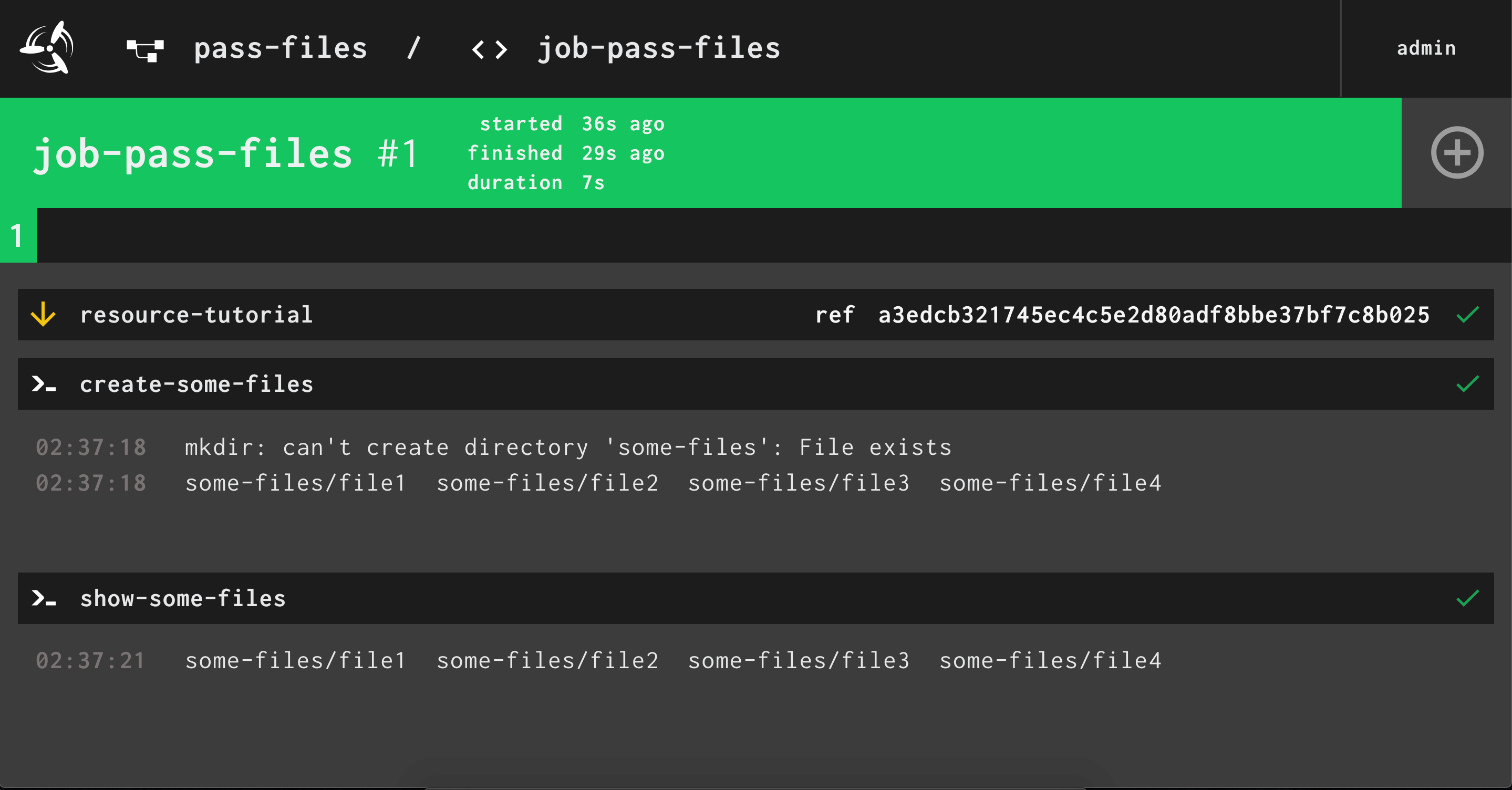

Note, task create-some-files build output includes the following error:

mkdir: can't create directory 'some-files': File exists

This is a demonstration that if a task includes outputs then those output directories are pre-created and do not need creating.
